What do the data and symbols on the SolarEdge inverter display mean? Check out our guide to learn how to read the information.

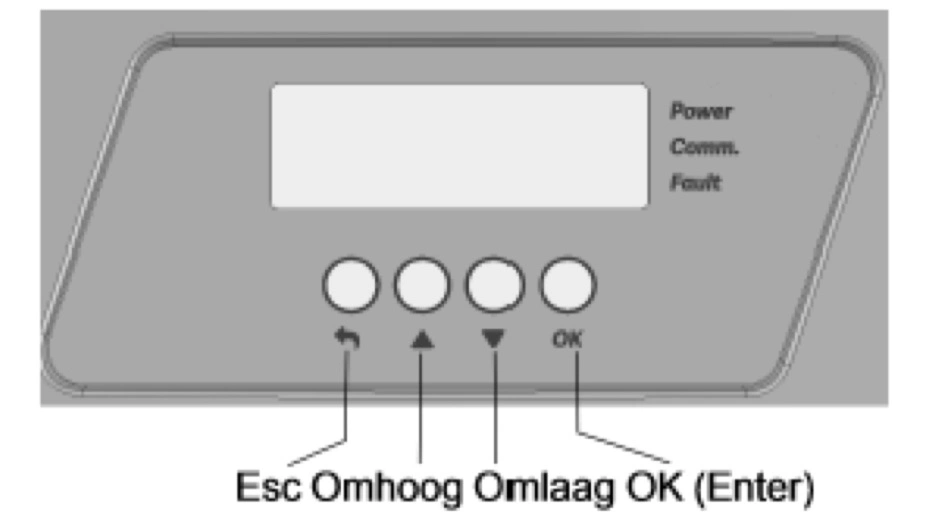

SolarEdge inverters display various measurements. You can navigate through different screens using the buttons below the display. The values you can read include:
- Vac [V]: Indicates the measured AC output voltage of the electrical grid.
- Vdc [V]: Displays the DC input voltage, which should equal the sum of the output voltage of all power optimizers.
- Pac [W]: Shows the produced AC output power.
- Fac [Hz]: The AC output frequency.
- OPs_Ok: The number of optimizers sending data (indicating they are connected).
- Temp. [C]: The temperature of the inverter's heatsink.
